Waygate Technologies portable and digital x-ray detector (DXR) are built for industrial environments where inspections must be done quickly, consistently and often in awkward locations. The detectors integrate with Rhythm Insight RT and provide predictable, high-contrast digital images for weld interpretation, corrosion assessment and general radiography.

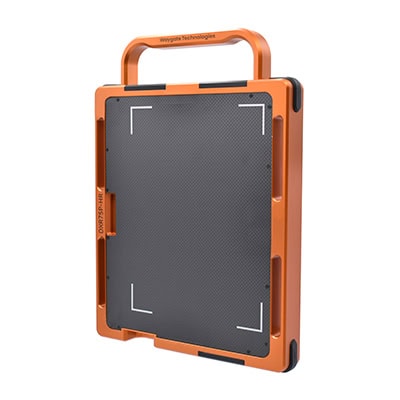

• The DXR75P-HR is used when weld detail matters most — pipeline welds, pressure-system welds, thin-wall stainless, orbital welds — and supports ISO 17636-2 Class B image quality.

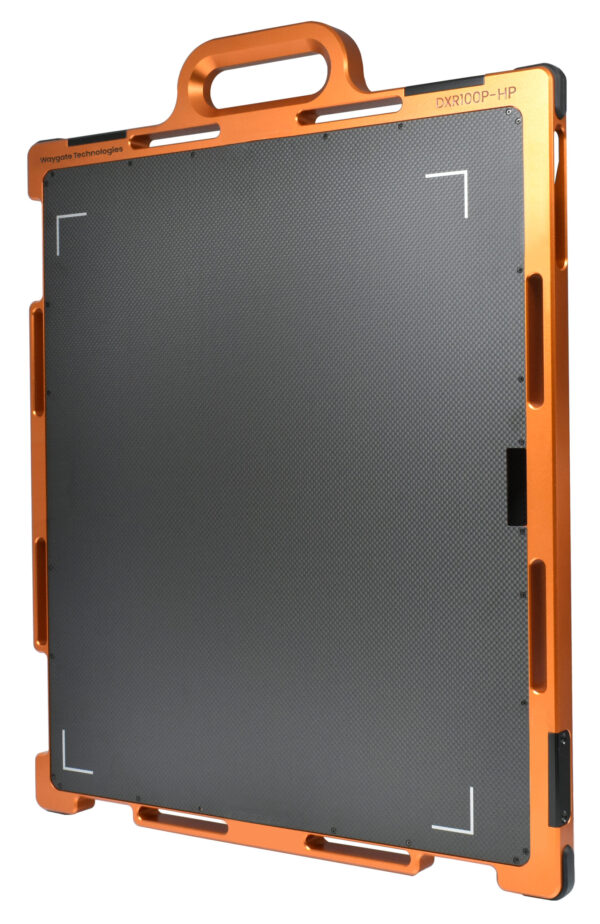

• The DXR100P-HP is the general-purpose panel for day-to-day RT on welds, components and mid-size structures.

• The DXR140P-HC provides a larger field of view and dose-efficient imaging for CUI, wall-loss, pipe supports, valves, tank shells and in-service inspection.

Labquip NDT supplies the full DXR range with guidance on detector sizing, DR workflow setup and support for teams transitioning from film or CR to true portable DR.

Applications

1. Weld Radiography

Used for pipeline welds, pressure-vessel welds, fabrication welds, stainless and duplex orbital welds, and structural steel. Meets the technical requirements for weld quality grading and code compliance.

2. Corrosion & In-Service Inspection (CUI / wall thickness)

Digital radiography for CUI, wall thinning, pipe supports, valves, boiler tubes and large components where the DXR140 offers dose efficiency and large coverage.

3. Castings, Components & General Radiography

Imaging of porosity, inclusions and geometry on steel, aluminium and nickel-alloy components. Useful in machine shops, foundries and maintenance engineering.

4. Concrete, Structures & Civil Assets

Digital inspection of reinforced concrete, bridge elements, multi-material structures and confined investigation points where internal detail is required.

5. Science, Archaeology & Heritage Imaging

Used for digital radiographs of artefacts, skeletal remains, composite historical objects and complex materials where high clarity and digital archiving are essential.

Labquip NDT Support

We provide practical support before and after purchase to all our customers across the UK.

• We help customers select the right DXR detector size and resolution for their weld, corrosion or general DR workflow.
• We offer setup guidance once the system is delivered. Our team supports with configuration, basic operator training and ongoing technical advice to keep inspections running smoothly.
