Labino Handheld MidBeam MB 3.0 Iris UV LED Lamp
Labino Handheld MidBeam MB 3.0 Iris UV LED Lamp - Image 2
Labino Handheld MidBeam MB 3.0 Iris UV LED Lamp - Image 3
Labino Handheld MidBeam MB 3.0 Iris UV LED Lamp - Image 4

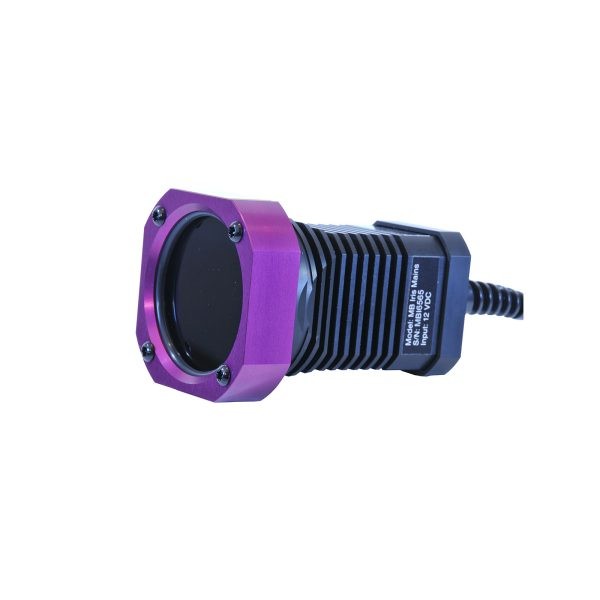

The Labino MB 3.0 Iris is an extremely compact, mains-powered UV LED lamp designed specifically for use with automated inspection systems that incorporate cameras to inspect hard-to-reach areas such as pipe interiors. It can also be mounted on magnetic benches or penetrant lines. The lamp does not have a handle but mounts on a bracket that can be screwed onto a fixture. The MB 3.0 Iris complies with major industry standards including:

ASTM E3022
Rolls-Royce RRES90061
Airbus AITM6-1001
USAF
Pratt & Whitney
The Boeing Co.
ISO 3059-12

Applications:

  • Automated non-destructive testing (NDT) systems
  • Inspection of pipe interiors and other hard-to-reach areas
  • Magnetic particle and penetrant inspection lines
  • Industrial environments requiring reliable, uniform UV illumination integrated with cameras
  • No integrated white light LED
  • No on/off switch; lamp powers on immediately when plugged in
  • Cable exits straight from the rear plate for easy mounting

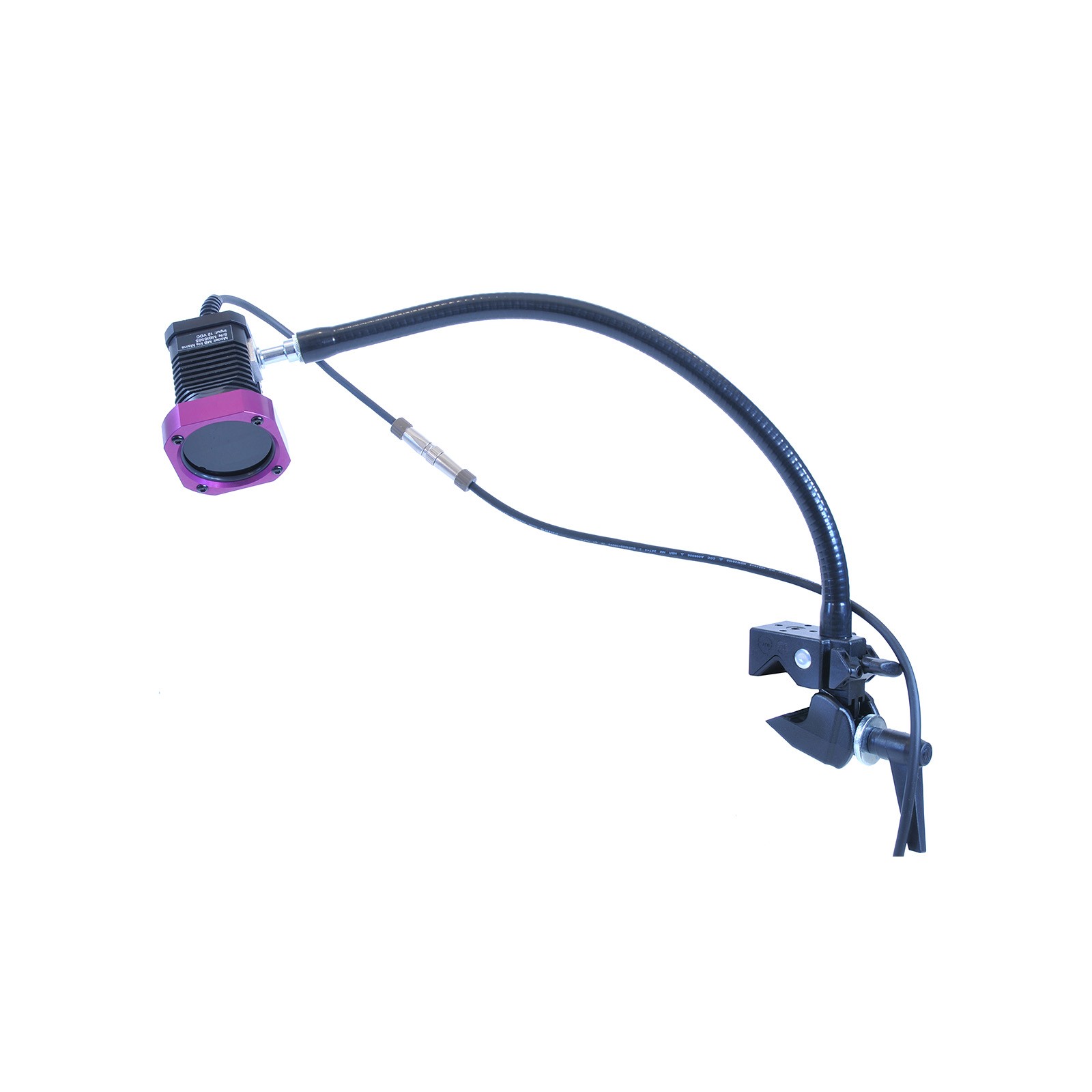

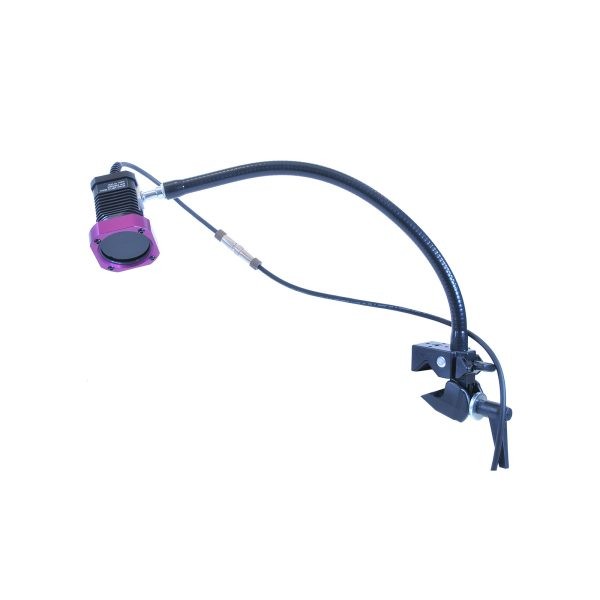

  • Mounting bracket with camera insert sits in a track underneath the lamp for secure fixture attachment

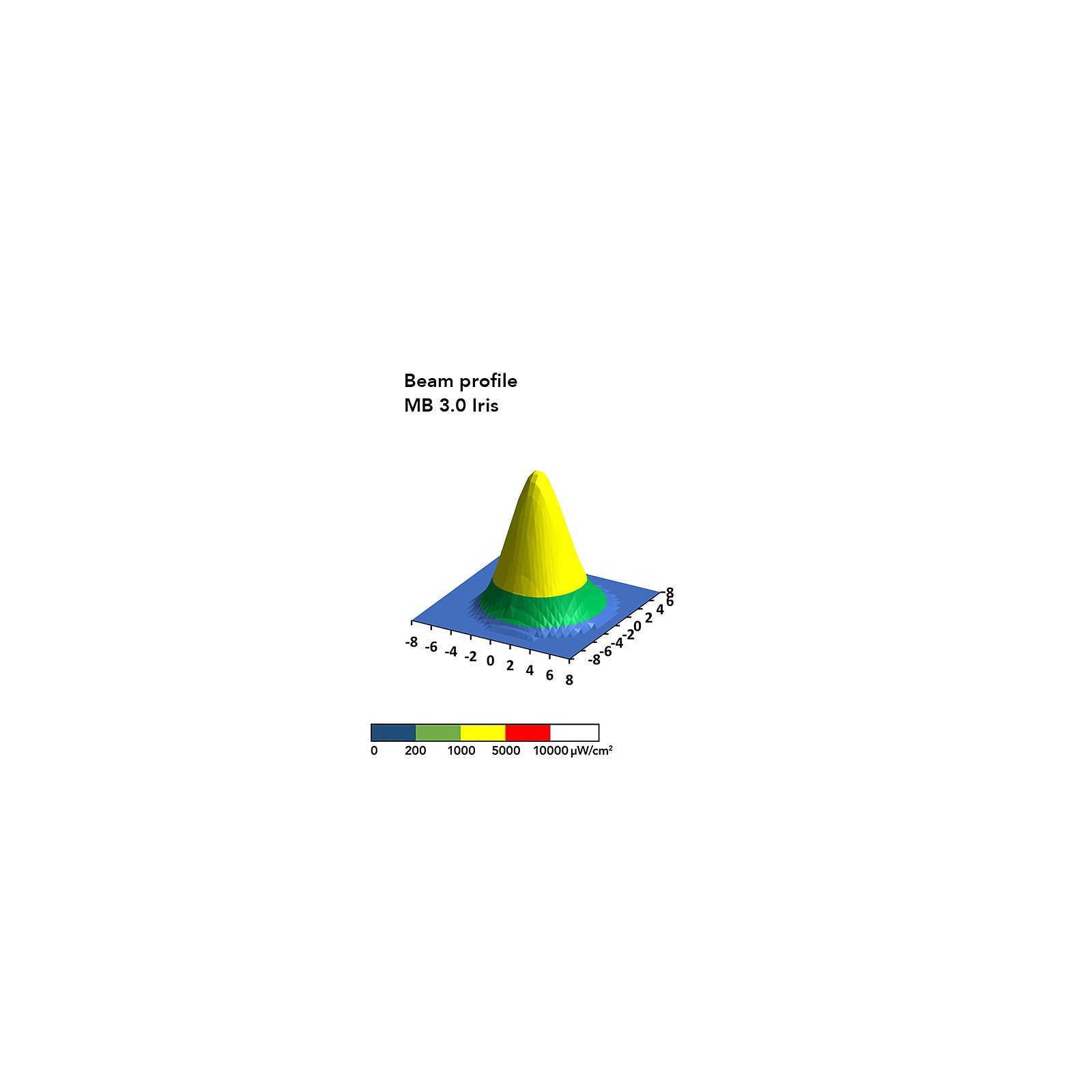

  • Produces a uniform UV-A beam with no dark spots or LED shadows
FREE DELIVERY ON ORDERS OVER £1500

Labino Handheld MidBeam MB 3.0 Iris UV LED Lamp

Warranty:

2 years manufacturer warranty
Part Number: LAL2533/L2533

£1,011.00

(Excl. VAT)

Lead Time: We aim to ship the item the next working day – for items not in stock an order confirmation will be issued with a forecasted ship date.
