The Labino GX Orion Waterproof Modular Overhead UV Inspection Light is a versatile, high-performance UV-A LED system designed for large-area non-destructive testing (NDT) inspections such as fluorescent magnetic particle testing (MT), penetrant testing (PT), crack, and leak detection. It features a modular design allowing multiple units to be combined to cover extensive inspection areas and is fully IP68 waterproof and penetrant resistant, making it ideal for harsh environments prone to water exposure.
All models produce a highly uniform beam with no LED footprints, dark spots, or shades, ensuring reliable and consistent inspection illumination. They comply with key industry standards including ASTM E3022-18, ISO 3059-12, Rolls-Royce RRES 90061, and Airbus AITM6-1001. The system includes a built-in PLC interface for full integration and monitoring within automated inspection setups.
There are three main GX Orion models:

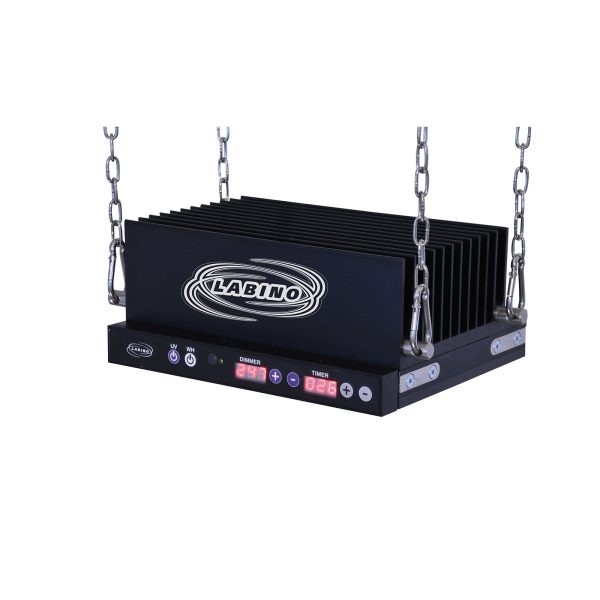

GX Orion REMOTE (Part No: L3100)
Offers adjustable UV intensity from approximately 1,500 to 7,000 µW/cm² at 38 cm (15 inches) and powerful white light up to 1,000 lux at 30 cm. It includes a remote control for switching UV and white light on/off, adjusting intensity, and setting timers from up to 5 meters away.

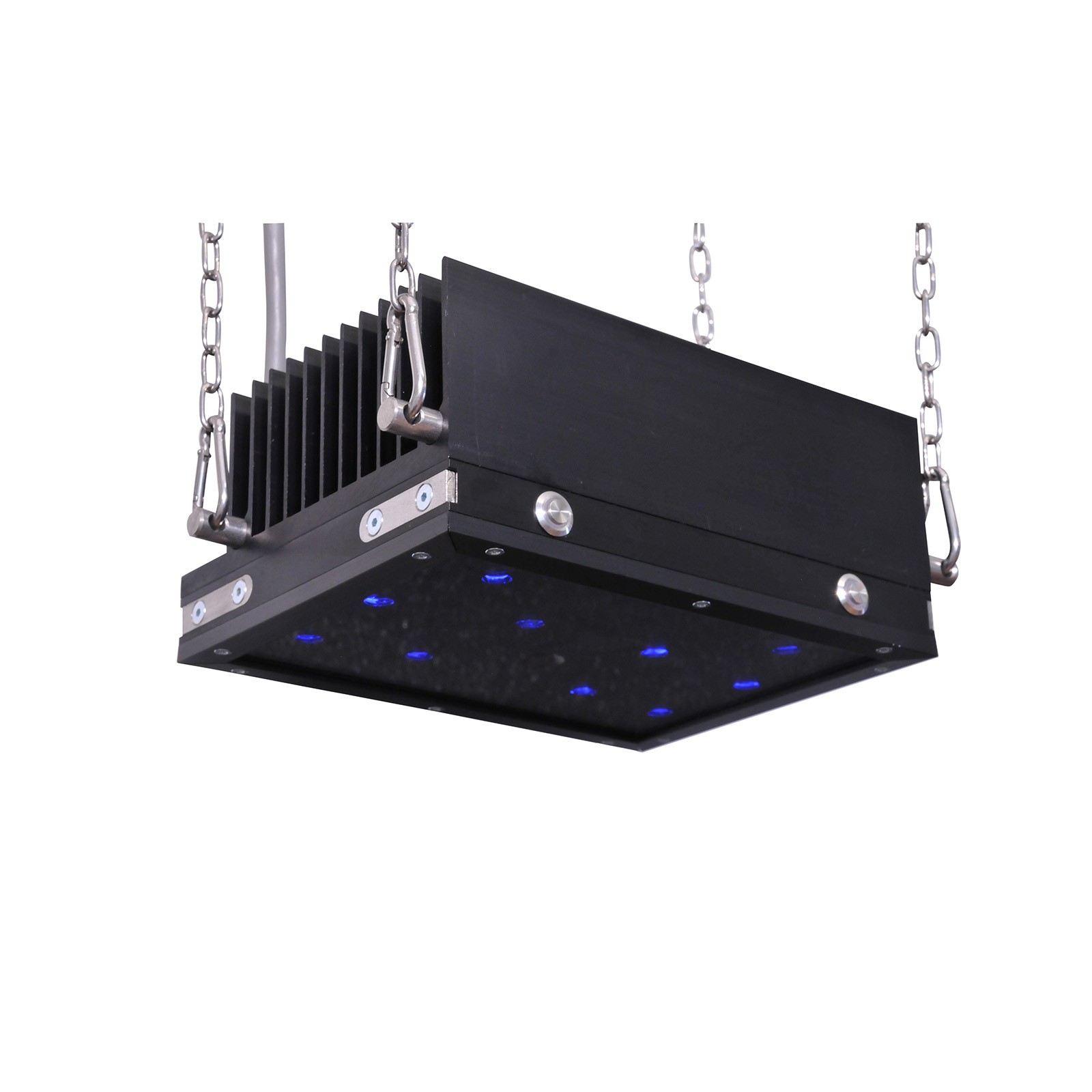

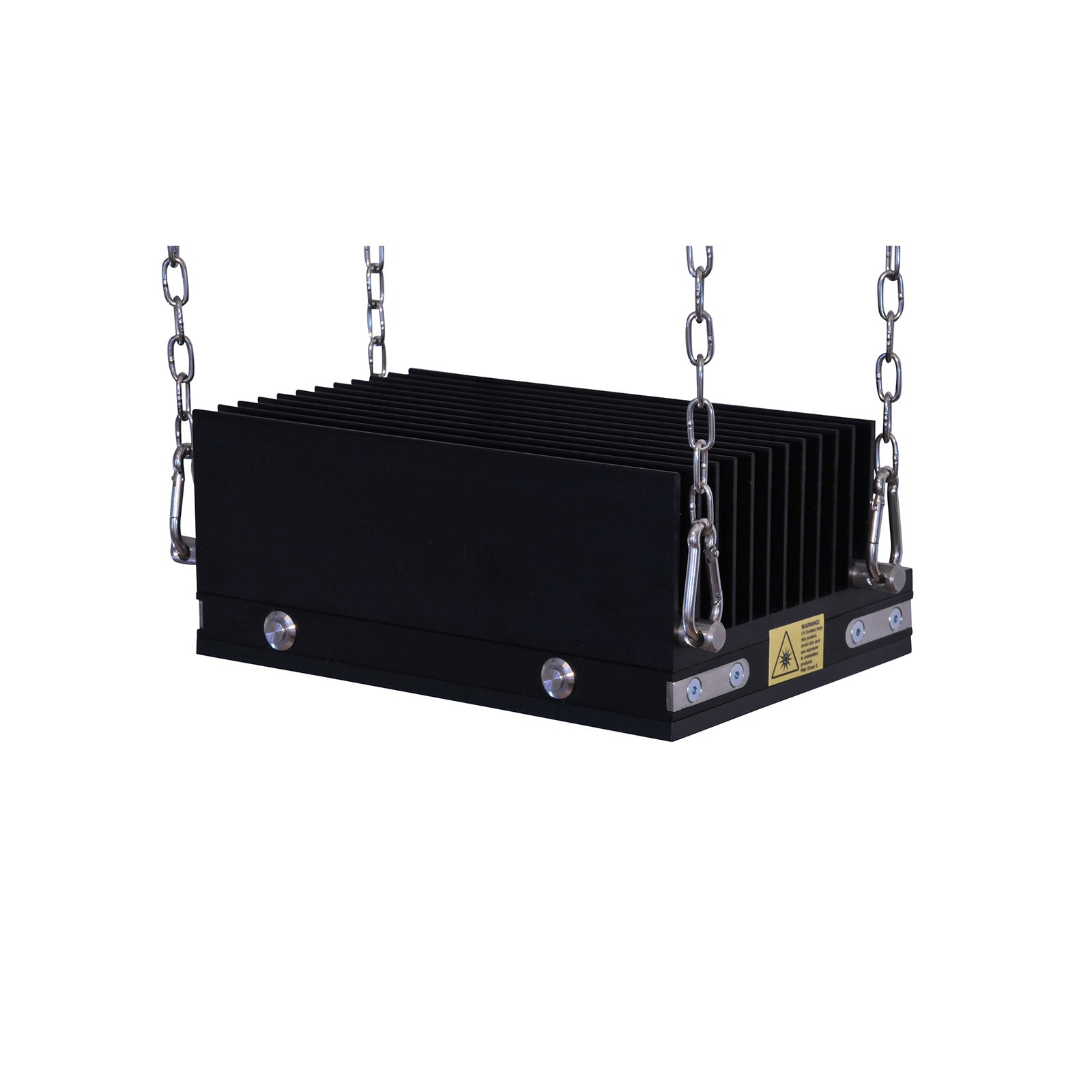

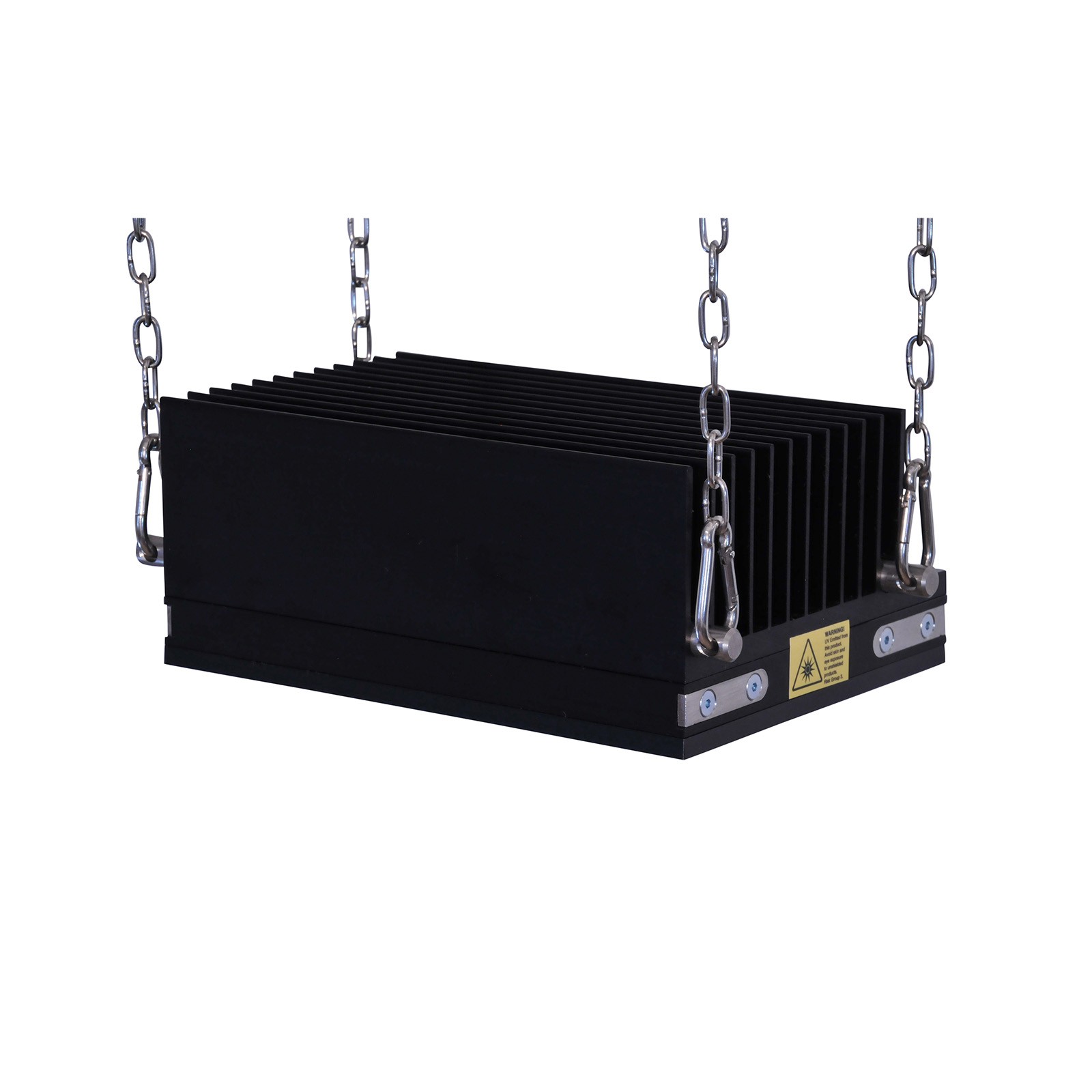

GX Orion UV & White Light (Part No: L3101 mother / L3104 extension)
Provides fixed UV intensity around 7,000 µW/cm² and white light at 1,000 lux with simple on/off buttons for UV and white light, but no remote control.

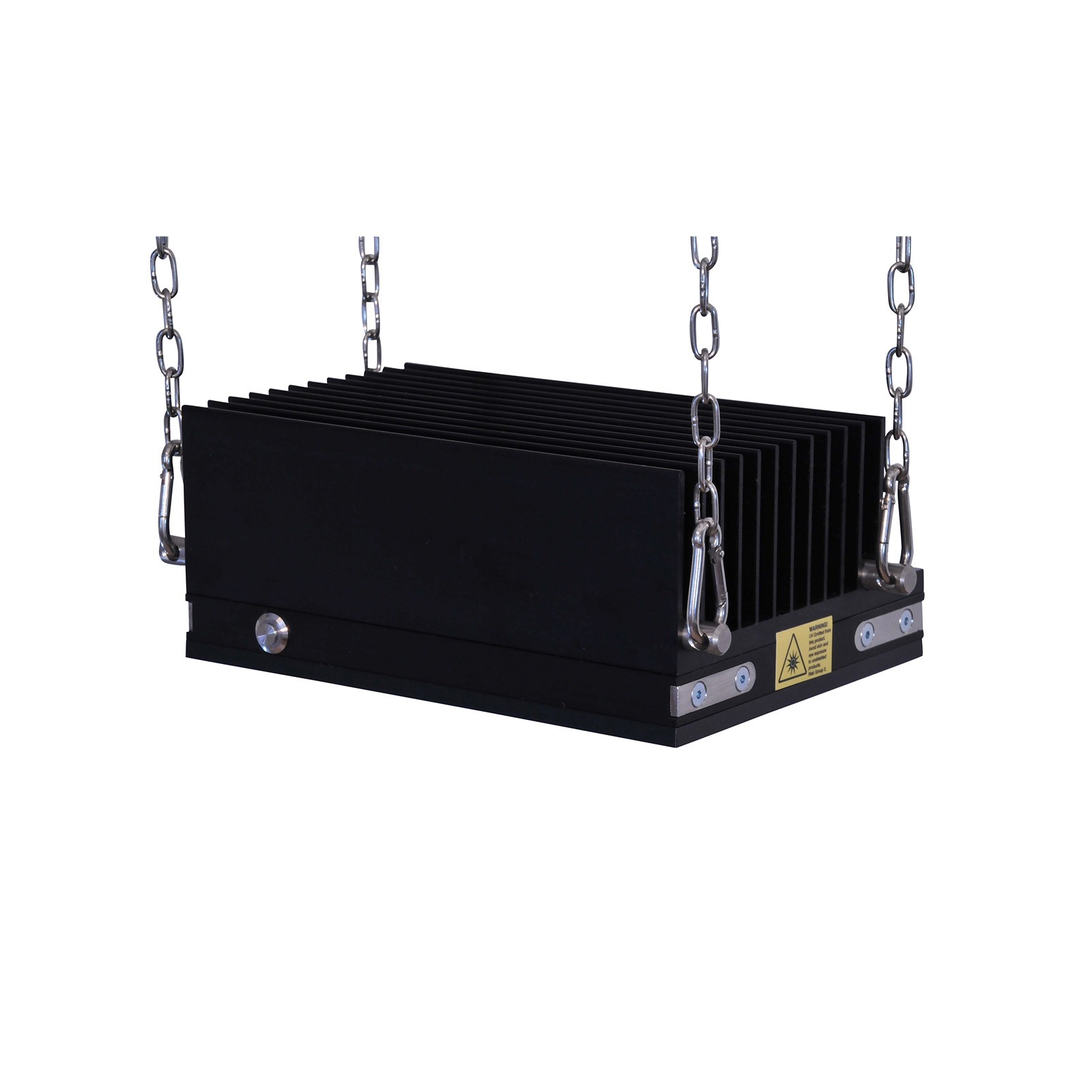

GX Orion UV Only (Part No: L3102 mother / L3105 extension)
Delivers about 4,500 µW/cm² UV intensity with a single UV on/off button, no white light or remote.
Applications:
- Fluorescent magnetic particle inspection (MT)
- Penetrant testing (PT)
- Crack and leak detection in aerospace, automotive, oil & gas, and industrial environments
- Inspection areas requiring waterproof, robust, and modular UV lighting
