Labino Apollo 3.1 UV-A & White Light Meter
Labino Apollo 3.1 UV-A & White Light Meter - Image 2
Labino Apollo 3.1 UV-A & White Light Meter - Image 3
Labino Apollo 3.1 UV-A & White Light Meter - Image 4
Labino Apollo 3.1 UV-A & White Light Meter - Image 5

The Labino Apollo 3.1 UV-A & White Light Meter is a precision instrument designed for accurate measurement of UV-A irradiation and visible light illuminance, essential for non-destructive testing (NDT), forensic inspection, and quality control applications. It features a wireless sensor with Bluetooth connectivity, allowing measurements from up to 5 meters (16 feet) away, ensuring stable and reliable readings without cable interference. IP67-rated sensor for dust and water resistance, suitable for tough industrial environments. Traceable to NIST standards and calibrated according to ISO/IEC 17025, ensuring measurement reliability and compliance with industry standards.

Labquip NDT is an authorised Labino calibration provider in the UK and the first to establish a dedicated calibration lab for Labino UV and white light meters.

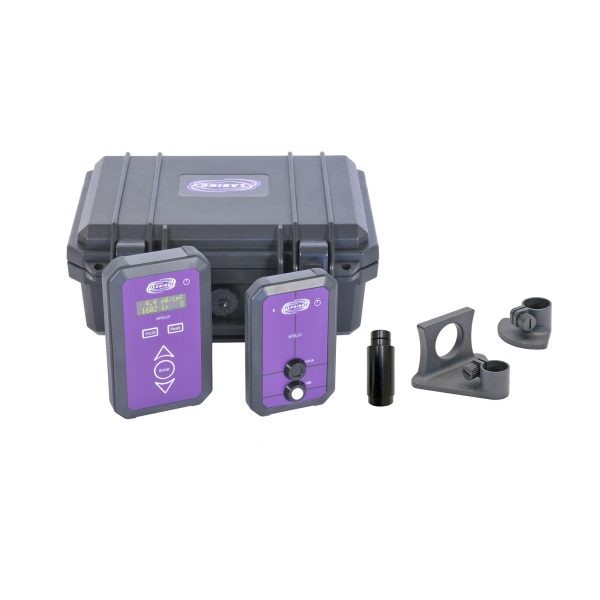

Apollo 3.1 Standard Kit (P/N M521)
1 x Reader unit with red OLED display
1 x Wireless UV-A & White Light sensor
1 x Luminance tube for measuring luminance (cd/m² or foot-lamberts)
2 x Luminance tube support stands
1 x Durable carrying case

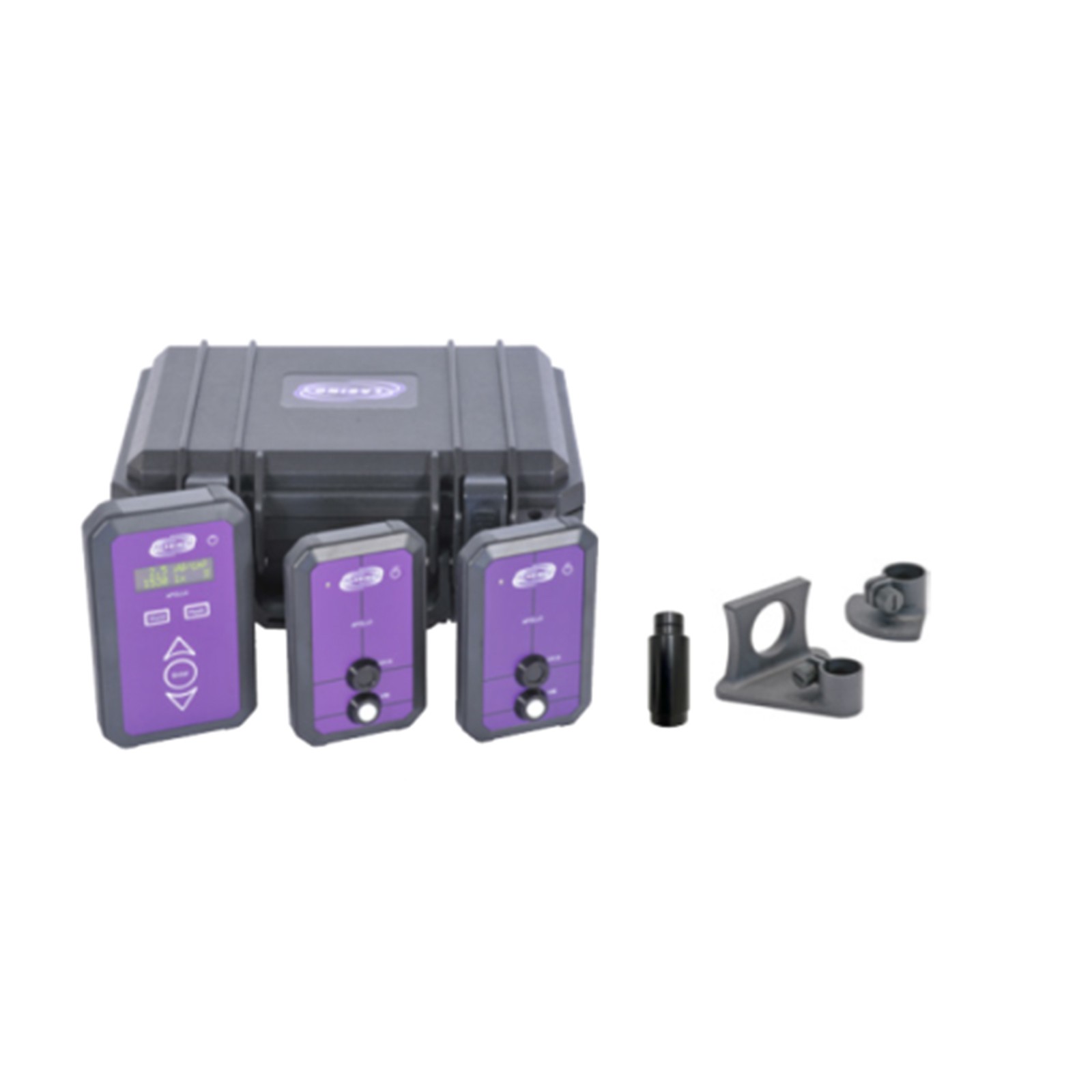

Apollo 3.1 Double Kit (P/N M522)
1 x Reader unit
2 x Wireless UV-A & White Light sensors (allows uninterrupted operation during calibration)
1 x Luminance tube
2 x Luminance tube support stands
1 x Durable carrying case

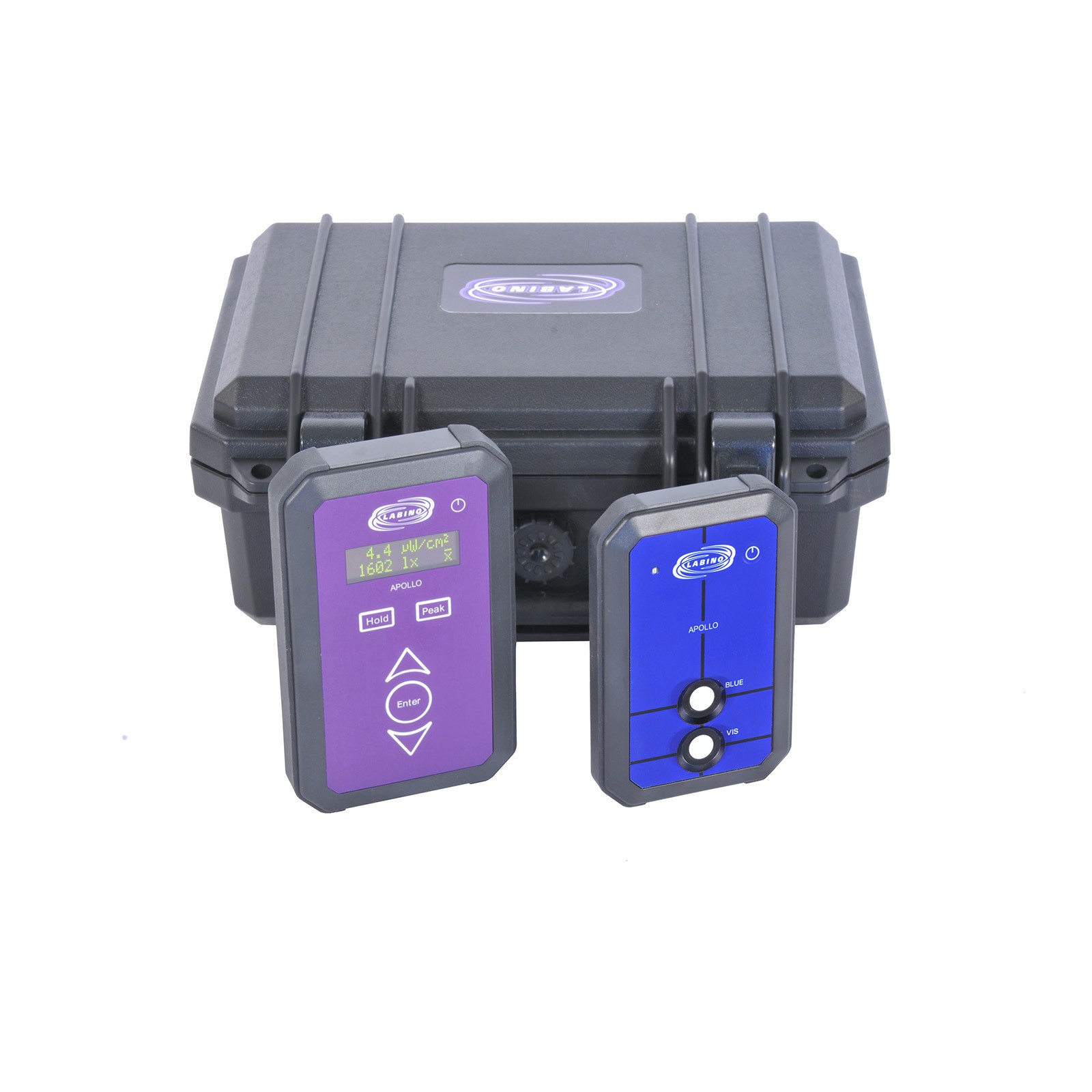

Apollo Blue Standard Kit (P/N M517)
1 x Reader unit
1 x Wireless Blue & White Light sensor (replaces UV sensor with blue light sensor, compliant with CEN/TR 16638)
1 x Carrying case

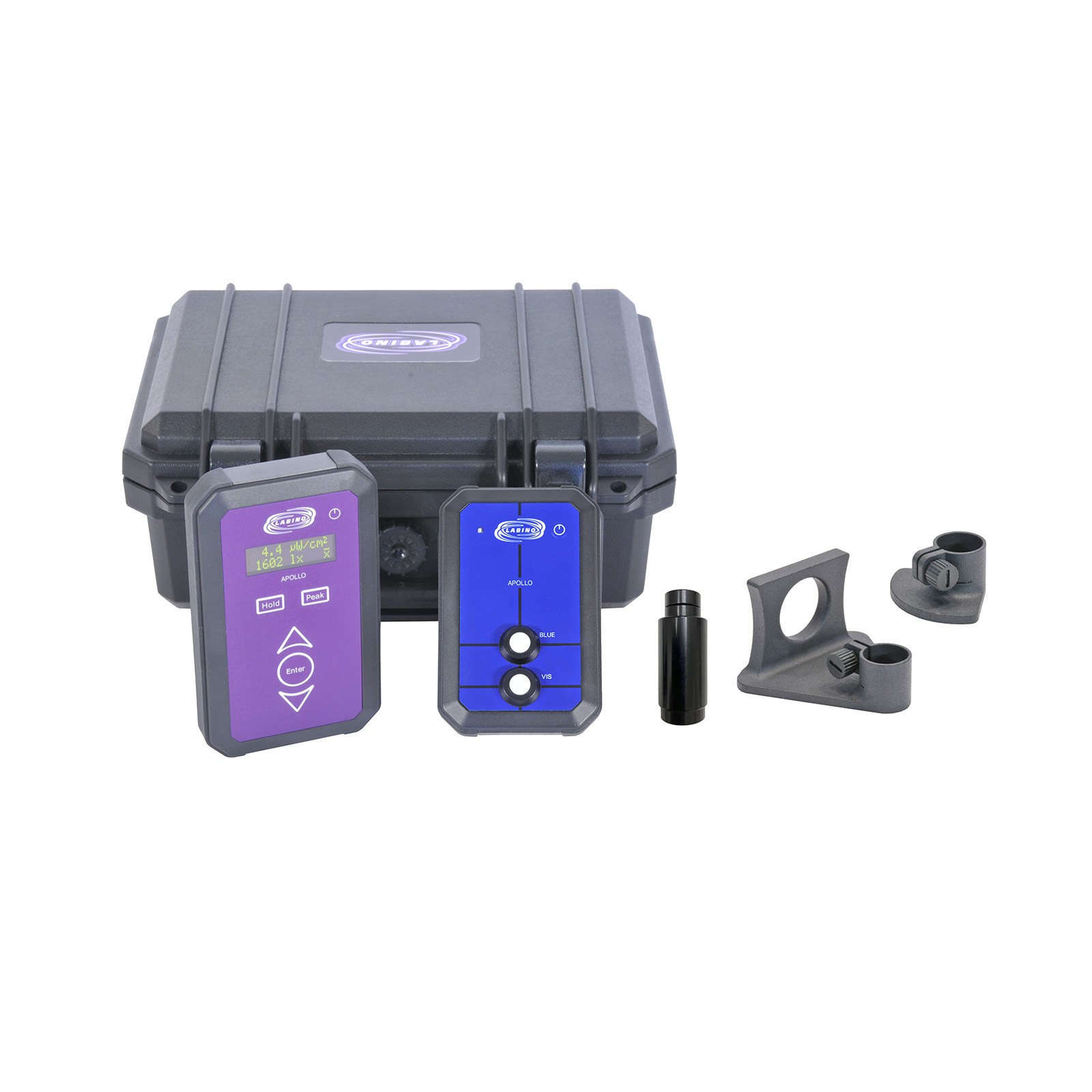

Apollo Blue 3.1 Standard Kit Luminance (P/N M519)
1 x Reader unit
1 x Wireless Blue & White Light sensor
1 x Luminance tube
2 x Luminance tube support stands
1 x Carrying case

Applications:

  • UV-A intensity verification for magnetic particle and fluorescent penetrant inspection (MPI & FPI)
  • Quality control in manufacturing and inspection processes
  • Radiographic inspection requiring luminance measurement
  • Forensic and scientific applications requiring precise UV and visible light measurement
  • Compliance verification with industry standards such as ASTM E3022-18, ISO 3059, and aerospace requirements
  • Measures UV-A irradiation in µW/cm² or W/m² and white light illuminance in lux or foot-candles (fc).
  • Offers luminance measurement in cd/m² or foot-lamberts (fL) with an optional luminance tube, ideal for radiographic testing.

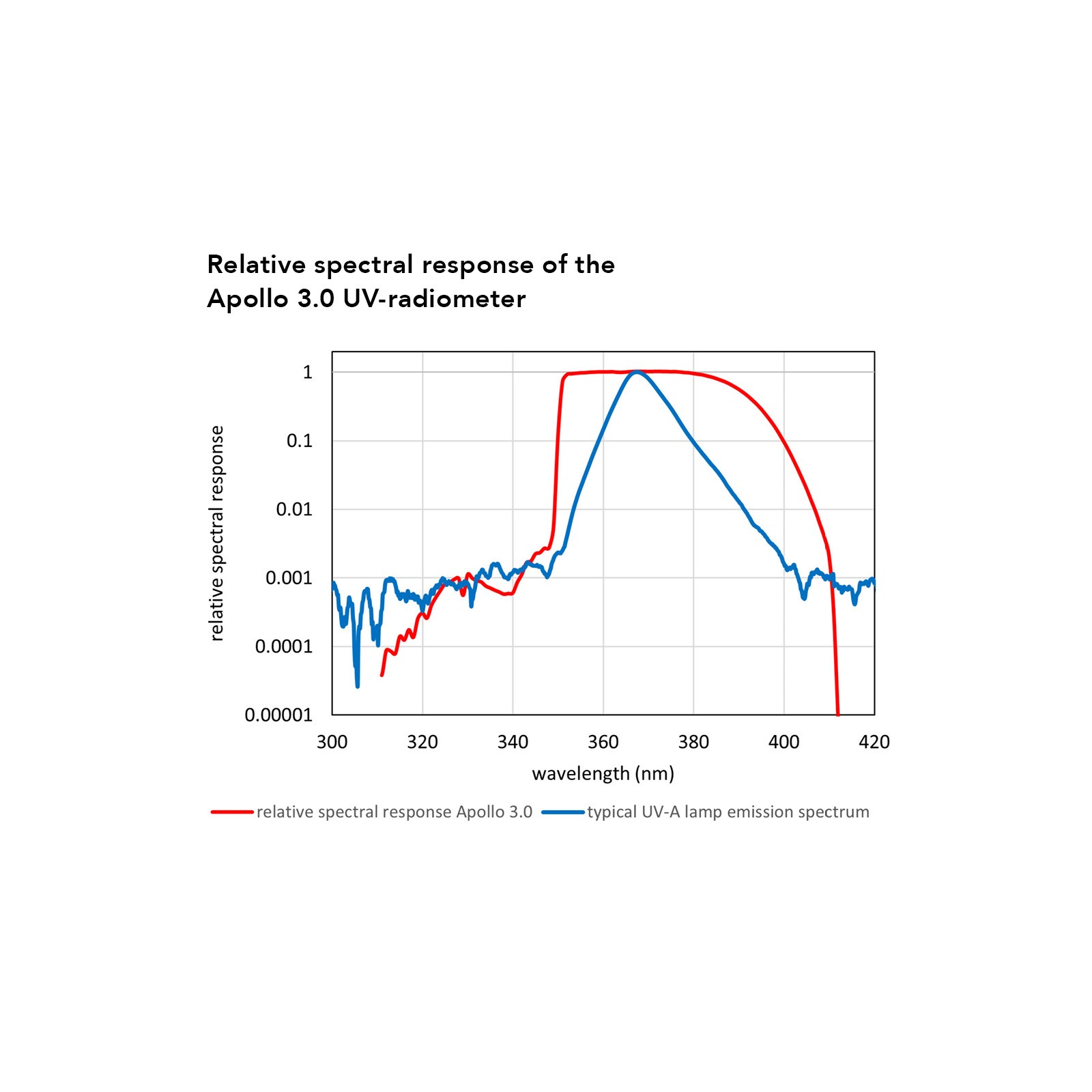

  • Equipped with a superior bandpass filter that excludes fluorescent interference, providing highly accurate visible light readings from UV lamps.
  • Wireless sensor unit enables remote measurements, improving ease of use and reducing measurement errors caused by sensor movement.
  • Ergonomic and lightweight design with a compact reader unit powered by three AA batteries and a sensor powered by three AAA batteries, both user-replaceable.
  • Red OLED display for clear readings even in dark environments, with hold and peak functions to capture and store measurement values.
FREE DELIVERY ON ORDERS OVER £1500

Labino Apollo 3.1 UV-A & White Light Meter

Warranty:

4 years manufacturer warranty
Part Number: N/A
Reset Options

Lead Time: We aim to ship the item the next working day – for items not in stock an order confirmation will be issued with a forecasted ship date.
