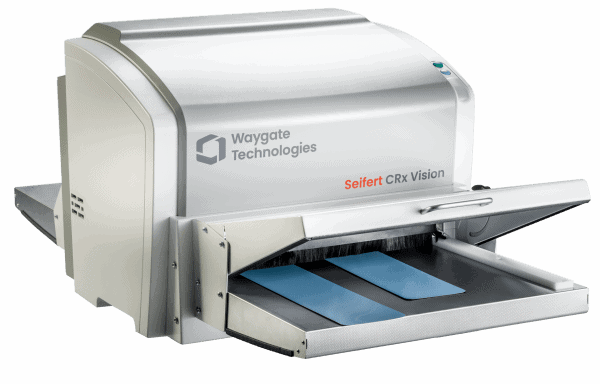

The Waygate Technologies CRxVision is a high-resolution computed radiography (CR) scanner built for precise weld inspection and broader RT applications where detail, plate stability and predictable exposure handling matter. The optical system maintains a sharp spot across the plate, the transport path prevents deflection, and the scanner accepts the plate sizes routinely used in pipeline fabrication, casting shops, geology labs and conservation facilities.

Optional Flash! enhancement provides controlled contrast and stabilised greyscale response for consistent interpretation across operators, materials and thickness ranges.

Applications

Weld & Corrosion Radiography

• For pipelines, pressure vessels, boiler tubing and structural welds
• Suitable for fusion-line, root and volumetric defect evaluation
• Effective for CUI (corrosion under insulation) and FAC (flow-accelerated corrosion)
• Consistent greyscale response for comparison across shifts and sites

Castings & Machined Components

• Steel, aluminium, nickel alloys and precision parts
• Identifies porosity, inclusions, shrinkage and surface-breaking features
• Supports both in-process and final inspection stages
• Useful for dimensional and material-consistency checks

Tubes, Pipes & Heat-Exchanger Work

• For small-diameter and complex tube systems
• Suitable for orbital welds and brazed joints
• Detects fouling, blockage patterns and thickness differences
• Effective for tube-bundle inspection in power, chemical and HVAC sectors

Structural & Civil Materials

• For infrastructure and construction materials
• Concrete density and reinforcement verification
• Grout fill confirmation
• Composite panel assessment and layer-bonding checks

Mining & Geological Investigation

• For geological and mineralogical material
• Core segments, rock samples and ore sections
• Veins, inclusions and density-change mapping
• Supports exploration and laboratory-based geology workflows

Archaeology, Heritage & Conservation

• For metal artefacts and multi-material objects
• Internal structure evaluation of coins, tools, fittings and weaponry
• Corrosion mapping in fragile or excavated materials
• Suited to cabinet X-ray workflows in conservation and research labs

Automotive & Rail Components

• For manufactured and safety-critical parts
• Chassis welds and structural castings
• Steering, suspension and brake components
• Rail axles, bogie castings and track hardware

Aerospace & Defence

• For regulated inspection environments
• Structural components, bonded assemblies and fastener regions
• Non-explosive ordnance and controlled components
• In-service inspection of aircraft and naval systems

Research, Universities & Materials Science

• For mixed-material and experimental work
• Multi-layer materials, composites and bonded structures
• Prototype components in R&D programmes
• Small components and density mapping in cabinet X-ray systems

Labquip NDT Support

Labquip NDT UK provides practical support before and after purchase:

• Application guidance for weld RT, casting inspection, geology, archaeology and research work
• Plate selection and exposure support for varied thickness and material groups
• Compatibility checks for existing industrial and cabinet X-ray systems
• Local repair and preventative maintenance carried out by our manufactured trained service engineers.
